Get all the power of a full-size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow—now and in the future. Buy HP Z2 Small Form Factor Workstation from Promise Computer Technology – HP Gold Partner in Dubai.
| 73297294 | 53133102 | |
|---|---|---|
| Processor | Intel Core i9-14900K | Intel Core i7-14700 |
| OS | Windows 11 Pro | Windows 11 Pro |
| Memory | 16 GB DDR5 | 16 GB DDR5 |
| Graphics | Integrated Intel UHD 770 | Integrated Intel UHD 770 |
| Storage | 1 TB SSD | 1 TB SSD |
| Power | 450 W | 450 W |
| Dimensions | 33.8 x 30.8 x 10 cm | 33.8 x 30.8 x 10 cm |
| Weight | 5.4 Kg | 5.4 Kg |
| Warranty | 3 year warranty | 3 year warranty |
| Action | Get a Quote Shop Now | Get a Quote Shop Now |

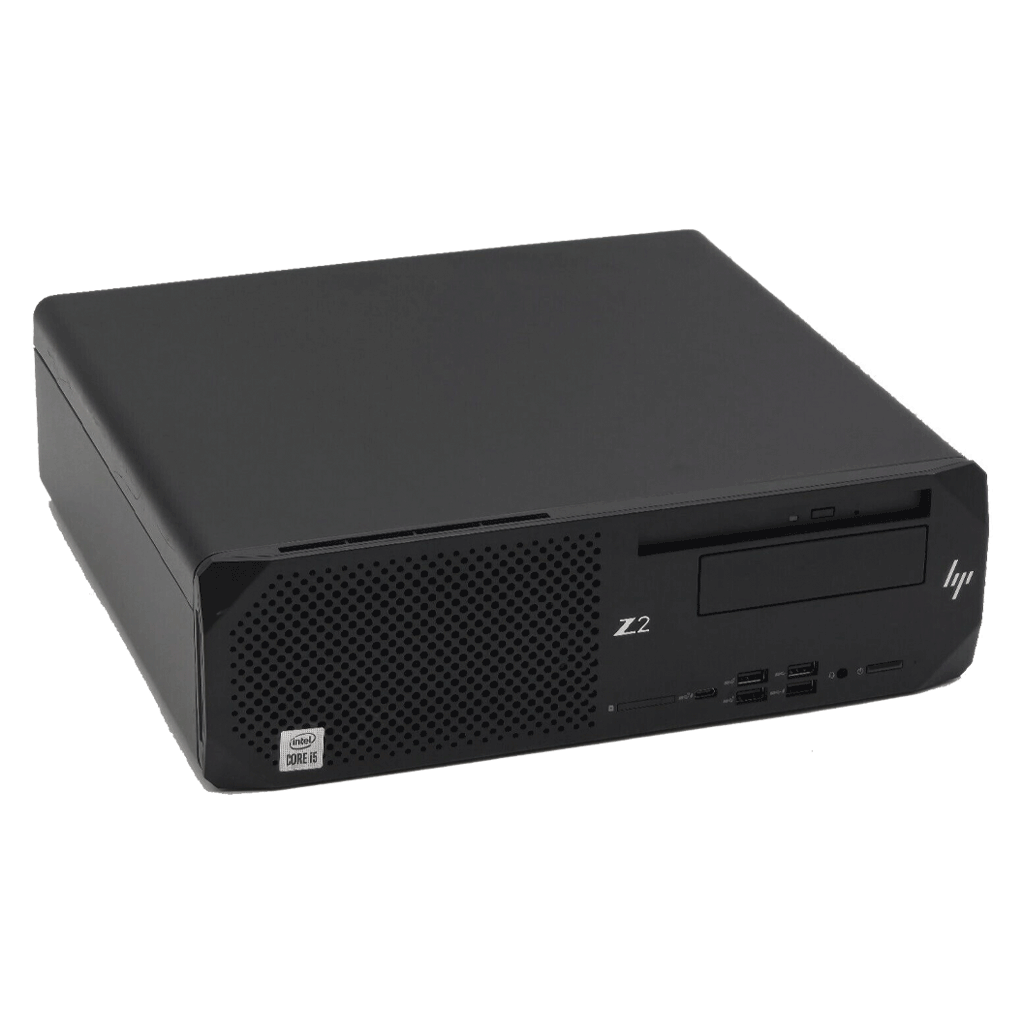

HP Z2 SFF G9 Workstation Desktop PC
Full size Z tower power
at half the size
HP Z2 G9 SFF Workstation Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow—from 3D design to real time ray tracing—now and in the future.
Design, simulate and—for the first time—real time ray trace on a Z2 SFF.Now fitting full height, full length pro graphics and Intel® Core™ processors,including K-Series, this PC delivers tower-sized performance that defies space constraints.
Accelerate your current workflow with a multitude of options across processor, graphics,memory, storage, and I/O ports. And with plenty of room to upgrade and expand, this PC is ready to grow with you as your workflow evolves
The HP Z2 G9 SFF WorkstationGet peace of mind with a PC that’s built to endure. The Z2 SFF undergoes 360K hours of rigorous testing, military-standard testing, and is certified for pro apps. And with HP Wolf Security for Business, it’s protected below, in and above the OS.

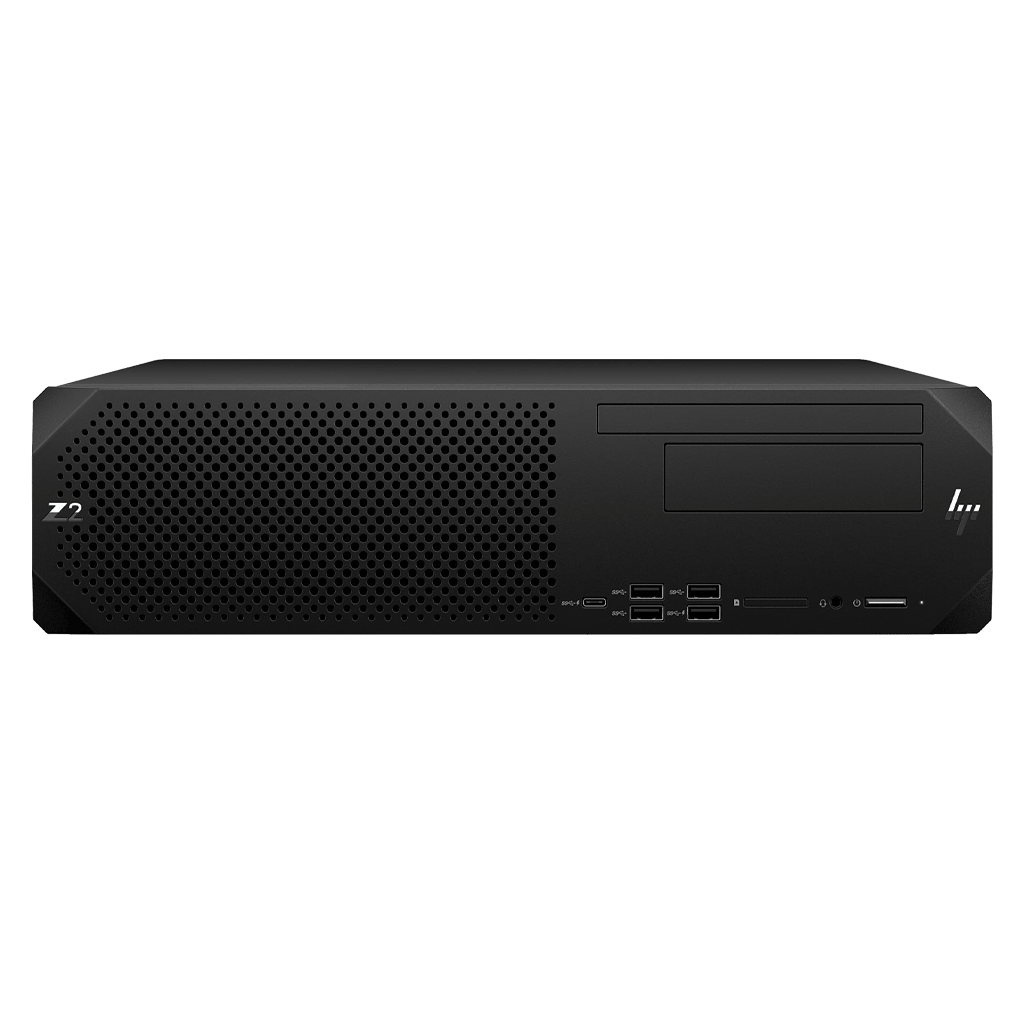

Front View:
| 1. | HDD Activity LED | |||
| 2. | Power button | |||
| 3. | Universal audio jack (with CTIA & OMTP headset support) | |||
| 4. | 2 Type-A SuperSpeed USB 5Gbps signaling rate port (1 charge supports up to 5V/2.1A) | |||
| 5. | 2 Type-A SuperSpeed USB 10Gbps signaling rate port | 6. | 1 Type-C SuperSpeed USB 10Gbps signaling rate port |
| 7. | Media Card Reader 4.0 (optional) | 8. | Slim ODD Bay |
| 9. | External/internal shared 3.5'' bay |
| 1. | Audio Line-out | 2. | DisplayPort 1.4 | ||
| 3. | Flex I/O module: choose one from the following: | ||||
| (1) DisplayPort 1.4 | (1) HDMI 2.0b | (1) VGA | |||
| (1) Dual Type-A SuperSpeed USB 5Gbps signaling rate | (1) 2nd GbE LAN | ||||
| (1) Type-C SuperSpeed USB 10Gbps signaling rate (Power Delivery 15W, Alt Mode DisplayPort) | |||||
| (1) Thunderbolt 3 with Type-C SuperSpeed USB4 40Gbps signaling rate (cabled to PCIe AIC) | |||||

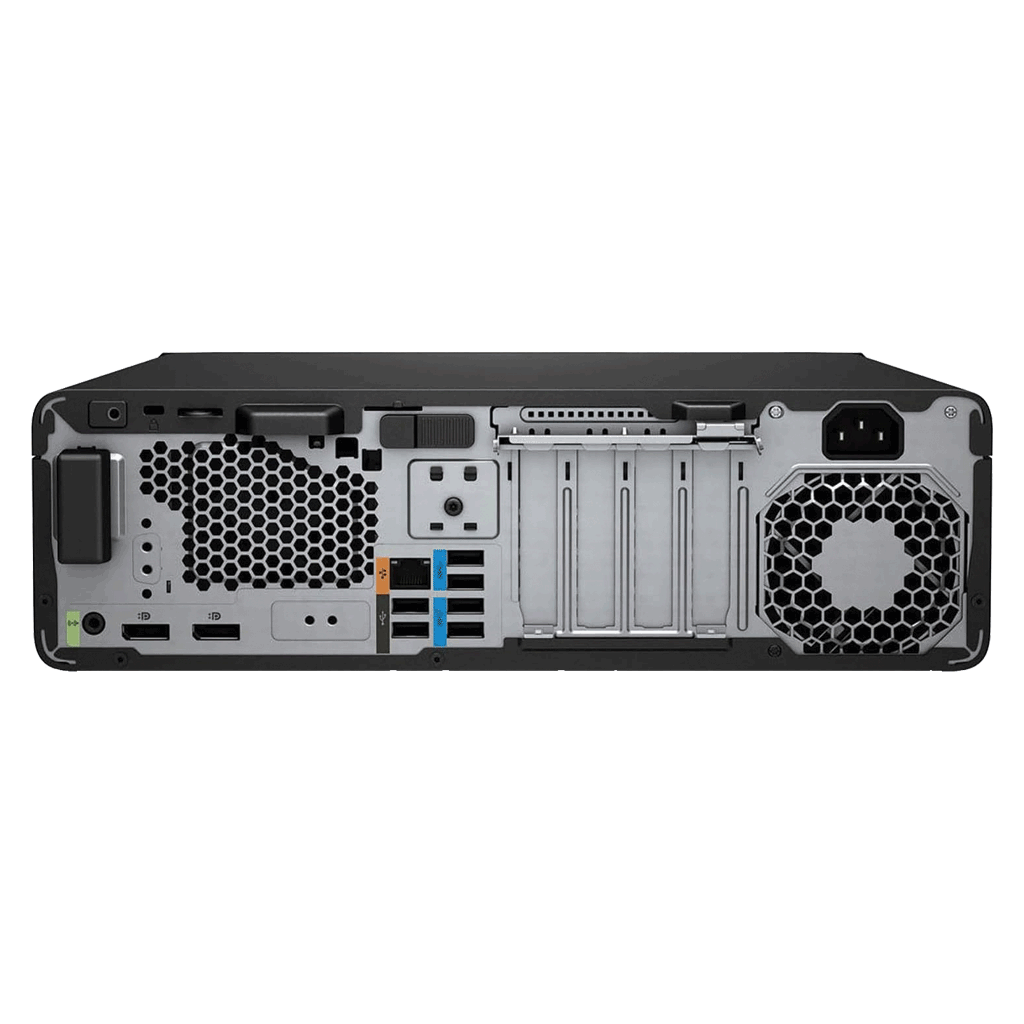

Rear View:
| 4. | 2 High-speed USB 480Mbps signaling rate port | |||||
| 5. | 2 Type-A SuperSpeed USB 10Gbps signaling rate port | |||||
| 6. | (1) Type-A SuperSpeed USB 5Gbps signaling rate port, (1) Hi-Speed USB 480Mbps signaling rate port | |||||
| 7. | WLAN Antenna (optional) | 8. | 2nd serial port (optional) | |||
| 9. | RJ-45 | 10. | Release latch | 11. | Power connector | |
| Available Operating Systems: | Windows 11 Pro, Windows 11 Home – HP recommends Windows 11 Pro for business, Linux Ready, Ubuntu 20.04 LTS |
| Processor family: | 13th Generation Intel Core i9 processor; 13th Generation Intel Core i7 processor; 13th Generation Intel Core i5 processor; 13th Generation Intel Core i3 processor; 12th Generation Intel Core i9 processor; 12th Generation Intel Core i7 processor; 12th Generation Intel Core i5 processor; 12th Generation Intel Core i3 processor |
| Available Processors: | Intel Core i5-12400 with Intel UHD Graphics (2.5 GHz P-core base frequency, up to 4.4 GHz P-core Max Turbo frequency, 18 MB L3 cache, 6 P-cores, 12 threads); Intel Core i3-12300 with Intel UHD Graphics (3.5GHz P-core base frequency, up to 4.4 GHz P-core Max Turbo frequency, 12 MB L3 cache, 4 P-cores, 8 threads); Intel Core i3-12100 with Intel UHD Graphics (3.3 GHz P-core base frequency, up to 4.3 GHz P-core Max Turbo frequency, 12 MB L3 cache, 4 P-cores, 8 threads); Intel Core i5-12600K with Intel UHD Graphics (2.8 GHz E-core base frequency, 3.7 GHz P-core base frequency, up to 3.6 GHz E-core Max Turbo frequency, up to4.9 GHz P-core Max Turbo frequency, 20 MB L3 cache, 6 P-cores and 4 E-cores, 16 threads); Intel Core i5-12600 with Intel UHD Graphics (3.3 GHz P-core base frequency, up to 4.8 GHz P-core Max Turbo frequency, 18MB L3 cache, 6 P-cores, 12 threads); Intel Core i5-12500 with Intel UHD Graphics (3.0 GHz P-core base frequency, up to 4.6 GHz P-core Max Turbo frequency, 18 MB L3 cache, 6 P-cores, 12 threads); Intel Core i9-12900 with Intel UHD Graphics (1.8 GHz E-core base frequency, 2.4 GHz P-core base frequency, up to 3.8 GHz E-core Max Turbo frequency, up to 5.0 GHz P-core Max Turbo frequency, up to 5.1 GHz with Intel TurboBoost Technology, 30 MB L3 cache, 8 P-cores and 8 E-cores, 24 threads); Intel Core i9-12900K with Intel UHD Graphics (2.4 GHz E-core base frequency, 3.2 GHz P-core base frequency, up to 3.9 GHz E-core Max Turbofrequency, up to 5.2 GHz P-core Max Turbo frequency, 30 MB L3 cache, 8 P-cores and 8 E-core, 24 threads); Intel Core i7-12700K with Intel UHD Graphics (2.7 GHz E-core base frequency, 3.6 GHz P-core basefrequency, up to 3.8 GHz E-core Max Turbo frequency, up to 5.0 GHz P-core Max Turbo frequency, 25 MB L3 cache, 8 P-cores and 4 E-core, 20 threads); Intel Core i7-12700 with Intel UHD Graphics (1.6 GHz E-core basefrequency, 2.1 GHz P-core base frequency, up to 3.6 GHz E-core Max Turbo frequency, up to 4.8 GHz P-core Max Turbo frequency, up to 4.9 GHz with Intel Turbo Boost Technology, 25 MB L3 cache, 8 P-cores and 4 E-cores, 20 threads); Intel Core i5-13400 (1.8 GHz E-core base frequency, 2.5 GHz P-core base frequency, up to 3.3 GHz E-core Max Turbo frequency, up to 4.6 GHz P-core Max Turbo frequency, 20 MB L3 cache, 6 P-coresand 4 E-cores, 16 threads); Intel Core i5-13500 (1.8 GHz E-core base frequency, 2.5 GHz P-core base frequency, up to 3.5 GHz E-core Max Turbo frequency, up to 4.8 GHz P-core Max Turbo frequency, 24 MB L3 cache, 6P-cores and 8 E-cores, 20 threads); Intel Core i5-13600 (2.0 GHz E-core base frequency, 2.7 GHz P-core base frequency, up to 3.7 GHz E-core Max Turbo frequency, up to 5.0 GHz P-core Max Turbo frequency, 24 MB L3cache, 6 P-cores and 8 E-cores, 20 threads); Intel Core i5-13600K (2.6 GHz E-core base frequency, 3.5 GHz P-core base frequency, up to 3.9 GHz E-core Max Turbo frequency, up to 5.1 GHz P-core Max Turbo frequency,24 MB L3 cache, 6 P-cores and 8 E-cores, 20 threads); Intel Core i7-13700 (1.5 GHz E-core base frequency, 2.1 GHz P-core base frequency, up to 4.1 GHz E-core Max Turbo frequency, up to 5.1 GHz P-core Max Turbofrequency, 30 MB L3 cache, 8 P-cores and 8 E-cores, 24 threads); Intel Core i7-13700K (2.5 GHz E-core base frequency, 3.4 GHz P-core base frequency, up to 4.2 GHz E-core Max Turbo frequency, up to 5.3 GHz P-coreMax Turbo frequency, 30 MB L3 cache, 8 P-cores and 8 E-cores, 24 threads); Intel Core i9-13900 (1.5 GHz E-core base frequency, 2.0 GHz P-core base frequency, up to 4.2 GHz E-core Max Turbo frequency, up to 5.2GHz P-core Max Turbo frequency, 36 MB L3 cache, 8 P-cores and 16 E-cores, 32 threads); Intel Core i9-13900K (2.2 GHz E-core base frequency, 3.0 GHz P-core base frequency, up to 4.3 GHz E-core Max Turbofrequency, up to 5.4 GHz P-core Max Turbo frequency, 36 MB L3 cache, 8 P-cores and 16 E-cores, 32 threads) |
| Maximum memory: | 128 GB DDR5-4400 non-ECC SDRAM; 128 GB DDR5-4400 ECC SDRAM, Transfer rates up to 4400 MT/s. |
| Internal storage: | 500 GB up to 2 TB 7200 rpm SATA HDD, 1 TB up to 12 TB 7200 rpm Enterprise SATA HDD, up to 500 GB 7200 rpm SED HDD, 512 GB up to 4 TB HP Z Turbo Drive PCIe NVMe TLC M.2 SSD, 512 GB up to 4 TB HP Z Turbo Drive PCIe NVMe SED Opal 2 TLC M.2 SSD, 256 GB up to 1 TB PCIe NVMe Value M.2 SSD, 500 GB up to 2 TB CRU SHIPS Removable NVMe Module |
| Optical drive: | HP Slim DVD-ROM; HP Slim DVD-Writer (##opticaldriveavailnote##) |
| Audio: | Realtek ALC3252 |
| Expansion slots: | 1 half-height PCle 4 x 16; 1 half-height PCle 3 x 4; 1 half-height PCle 3 x 4 (x 16 connector); 1 half-height PCle 3 x 1; 1 full-height PCle 4 x 16; 1 full-height PCle 4 x 16 (x 16 connector) (1 M.2 2230 slot for WLAN and 3 M.22280 slots for storage) |
| Input devices: | HP Wired Desktop 320K keyboard; HP Wired Desktop 320MK Mouse and Keyboard; HP 125 Wired Keyboard; HP 655 Wireless Keyboard and mouse combo; HP 975 Wireless Keyboard; HP 455 Programmable Wireless Keyboard; HP Wired Desktop 320M mouse; HP wired desktop 128 laser mouse; HP 125 Wired Mouse; HP Creator 935 Black Wireless Mouse; |
| Drive Bays: | One 3.5" HDD; One slim ODD; One 2.5" HDD; One 3.5" HDD; Three M.2 NVME 2280 SSD |
| Software: | HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP PC Hardware Diagnostics Windows; Z-Central Remote Boost; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0; |
| Security management: | HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Sure Sense Gen2; HP Sure RunGen5; |
| Security Software Licenses: | HP Wolf Pro Security Edition |
| Management features: | HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager ; HP BIOS Configuration Utility |
| Power: | 260 W 92% efficient, wide-ranging, active PFC; 550 W 92% efficient, wide-ranging, active PFC; 450 W 90% efficient, wide-ranging, active PFC |
| Dimensions: | 38.4 x 30.8 x 10 cm; |
| Weight: | Starting at 5.0 kg; (Exact weights depend upon configuration (System weight only)) |
| Ecolabels: | IT ECO Declaration; TCO Certified configurations available; EPEAT Gold registered in the U.S. |
| Energy star certified (series fixed): | ENERGY STAR certified |
| Sustainable impact specifications: | Ocean-bound plastic in speaker enclosure; 45% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; 80 Plus Gold power supplies available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure and system fan; Contains recycled metal |
| Compatible displays: | All HP Z Displays and HP Dream Color Displays are supported. For more information see www.hp.com/go/zdisplays (Supports 8 displays, driving 8 displays requires the use of integrated and discrete graphics ports. Each source can drive a total of 4 displays. At least one of the integrated graphics ports need to drive two displays in a daisy chain configuration.) |
