Top-of-the-line power to fuel those who reimagine our world. When you need a workstation with the capability to run complex simulations, handle advanced Machine Learning algorithms and process huge amounts of data, the HP Z8 doesn’t disappoint. The HP Z8 G5 Workstation offers more CPU performance than ever before, in a classic dual-socket design, to accelerate rendering with real-time ray tracing, data visualization, and model training—plus plenty of room to expand as demands change.
| 5E1A6ES | 5E1A5ES | |
|---|---|---|
| Processor | Intel Xeon Silver 4410Y | Intel Xeon Silver 4410Y |
| OS | Linux Ready | Windows 11 Pro |
| Memory | 16 GB DDR5 | 16 GB DDR5 |
| Storage | 1 TB SSD | 1 TB SSD |
| Power | 1450 W | 1450 W |
| Dimensions | 8.5 x 21.7 x 17.5 in | 8.5 x 21.7 x 17.5 in |
| Weight | 22.49 kg | 22.49 kg |
| Warranty | 3 year warranty | 3 year warranty |
| Action | Get a Quote Shop Now | Get a Quote Shop Now |
Run 3D simulations and edit 8K video in real time with up to 56 processing cores and up to 3 TB high-speed memory. Certified for serious software, such as ANSYS or After Effects, you can ideate and iterate more to deliver better work in less time.
Advanced security features come standard on every Z8. Rest assured your device, identity and data are safe with security software like HP Client Security Suite Gen33 and HP Sure Start Gen38, the industry’s first self-healing BIOS with intrusion detection.
From the inside out, the Z8 is an engineering wonder. The modern exterior provides tool-free access to a clean, modular interior. Strategically placed vents and ducts throughout the system streamline airflow for ultra-quiet performance.
Operating Systems Support your unique user needs with a choice of Windows 11 Pro, WSL2 or Linux operating systems
Power demanding professional workloads with more CPU performance than ever before—up to 64 cores with 2 next-gen Intel Xeon CPUs—and professional grade security and reliability.
Tackle processor-heavy rendering, machine learning, and data visualization projects with up to 2 NVIDIA RTX A6000 or 2 AMD Radeon Pro W6800 GPUs.
Power through memory-intensive workloads with up to 1TB DDR5 memory for fast CPU-dependent rendering, model training and development, and data visualization performance.
Get up to 120TB of storage across a variety of devices, including new front-accessible, hot-swappable NVMe devices with status information via external LED and email notifications.
Keep quiet, cool and focused even at peak performance. Smart fan control keeps the system whisper-quiet by tuning fan speeds in real-time using over 20 temperature sensors.
Thunderbolt 4 technology for fast data transfers, and two ports of lightning-quick 10 GbE network connection at a lower cost than standard PCIe add-in cards.
Access the power of your Z from any device with HP Anywhere —remote access software delivering fast responsiveness and image quality, even in film editing and data visualizations.
Get enhanced support and reduce downtime. HP Smart Support provides support agents, secure access to device health insights, and configuration data for faster troubleshooting.
Z by HP Data Science Stack Manager provides easy access to popular data science tools and updates them automatically, to help you customize your environment on Windows or Ubuntu.
Work with confidence knowing your desktop is certified with leading software applications to ensure peak performance even with complex projects.
Get a hardware-enforced, always-on defense. From the BIOS to the browser - above, in, and below the OS - these constantly evolving solutions help protect from modern threats.

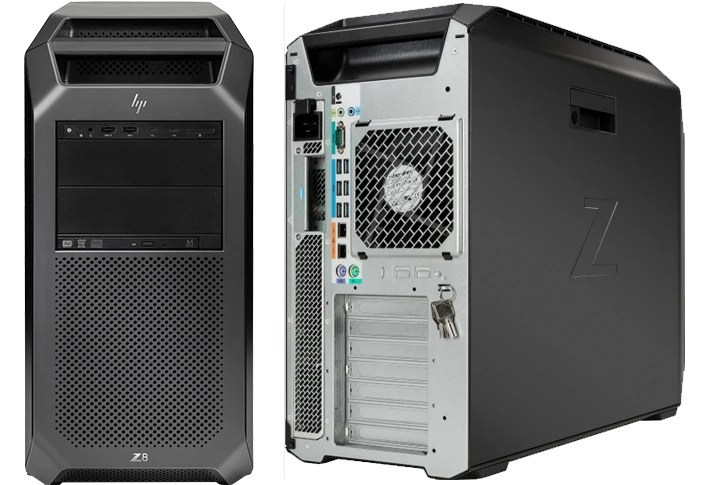

| 1. | Integrated Front Handle | 2. | Power Button |
| 3. | HDD Activity LED | 4. | Headphone/microphone combo |
| 5. | Front I/O: 4 SuperSpeed USB Type-A 5 Gbps signaling rate [left-most Type-A ports supports BC1.2 (Battery Charging)] | 6. | SD Card Reader |
| 7. | 2x External 5.25" bay | 8. | 9.5mm Optical Drive Bay |
| 1. | 2 Intel Xeon Processors (Sapphire Rapids-Scalable) | 2. | 16 DIMM slots for DDR5 ECC Memory – 8 DIMMs per installed processor |
| 3. | Slot 1: PCIe x16 Gen4; Slot 2: PCIe x16 Gen4 - Available ONLY when 2nd processor is installed; Slot 3: PCIe x4 Gen3; Slot 4: PCIe x16 Gen5; Slot 5: PCIe x8 Gen3; Slot 6: PCIe x16 Gen3 - Available ONLY when 2nd processor is installed; Slot 7: PCIe x4 Gen3 | ||
| 4. | 2 PCIe x8 Gen4 configurable with 4 Z Turbo M.2 SSDs (2nd slot available ONLY when 2nd processor is installed) | 5. | 6 SATA ports |
| 6. | 3 Internal USB Ports (1 single USB2.0 port, 1 dual USB2.0 port, 1 USB3.0 port (for the SD card reader)) | 7. | 4 Internal 3.5" bays |
| 8. | 2 External 5.25" bays and Slimline Optical Drive | 9. | 1 Internal NVMe connector to front removable M.2 carrier |
| 1. | Choice of 90% Efficient Power Supplies: • 1125W @110V or 1450W @200V • 1450W @110V or 1700W @200V |
| 2. | Rear Power Button |
| 3. | Audio in/out |
| 4. | 6 SuperSpeed USB Type-A 5 Gbps signaling rate |
| 5. | 2 RJ-45 integrated LAN ports (1 GbE AMT, 1GbE) |
| 6. | 2 10GbE LAN ports (optional) |
| 7. | Integrated Rear Handle |
| Processor family: | Intel Xeon Scalable processor |
| Maximum memory: | 3 TB DDR4-2666 ECC SDRAM; 1.5 TB DDR4-2933 ECC SDRAM Transfer rates up to 2933MT/s. |
| Memory slots: | 24 DIMM with 2 processors |
| Optical drive: | HP Slim DVD-ROM; HP Slim Blu-ray Writer; HP Slim DVD-Writer |
| Expansion slots: | 2 PCIe x 4; 3 PCIe x 8; 4 PCIe x 16 (1 PCIe x 8 has rear bulkhead access and 2 PCIe x 8 are internal access only. Slot 1: Transforms to PCIe x 8 when 2nd CPU is installed. Slots 3 and 6: are available only when 2nd processor is installed. |
| Input devices: | HP Wireless Business Slim Keyboard and Mouse Combo; HP USB Business Slim Keyboard; USB Premium wired keyboard; USB Smart Card (CCID) keyboard ; 3Dconnexion CADMouse; HP USB Optical Mouse; HP PS/2 Mouse; HP USB Hardened Mouse |
| Drive Bays: | Two 5.25"; Four 2.5" or 3.5" |
| Power: | 1700 W internal power supply, up to 90% efficiency, active PFC; 1450 W internal power supply, up to 90% efficiency, active PFC; 1125 W internal power supply, up to 90% efficiency, active PFC |
| Dimensions: | 21.59 x 55.12 x 44.45 cm |
| Weight: | Starting at 22.4 kg; (Exact weight depends on configuration.) |
| Warranty: | 3 year (3-3-3) limited warranty and service offering includes 3 years of parts |
