The HPE Networking Instant On Switch Series 1960 empowers your network to meet your business’s growing needs. With increased bandwidth, simplified network management, and the ability to handle multiple devices, it provides the ideal solution for your business.
| JL805A | JL806A | JL807A | JL808A | JL809A | |
|---|---|---|---|---|---|

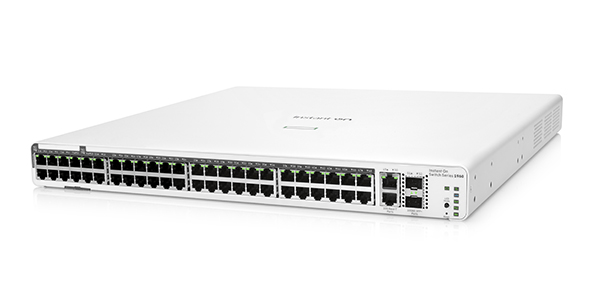

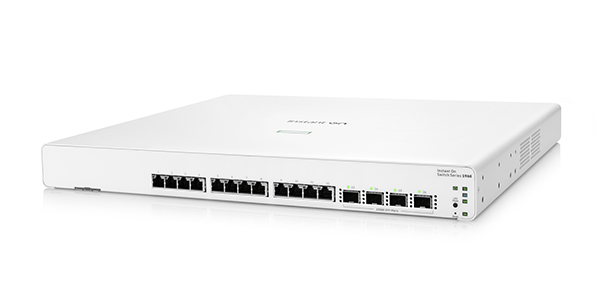

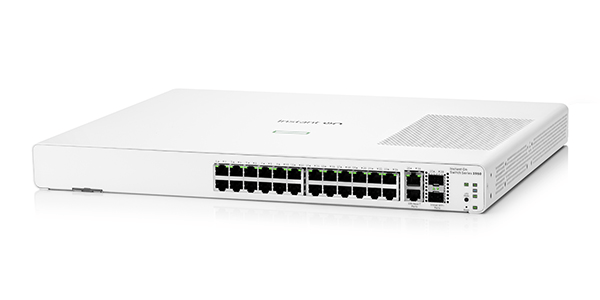

| Model Name | Instant On 1960 12XGT 4SFP | Instant On 1960 24G 2XGT 2SFP | Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP | Instant On 1960 48G 2XGT 2SFP | Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP |
| I/O Ports | 12 RJ-45 ports 4 SFP+ 10GbE Ports | 24 RJ-45 ports 2 SFP+10GbE ports | 24 RJ-45 ports 2 SFP+ 10GbE ports | 48 RJ-45 ports 2 SFP+ 10GbE ports | 48 RJ-45 ports 2 SFP+ 10GbE ports |
| Weight | 4.3 Kg | 3.9 kg | 3.9 kg | 4.4 kg | 4.4 kg |
| Dimension | 350.5 x 442.5 x 43.95 mm | 350.5x 442.5x 43.95 mm | 350.5 x 442.5x 43.95 mm | 350.5 x 442.5 x 43.95mm | 350.5x 442.5 x 43.95 mm |
| Throughput | 238 Mpps | 95 Mpps | 95 Mpps | 131 Mpps | 131 Mpps |
| Switching Capacity | 320 Gbps | 128 Gbps | 128 Gbps | 176 Gbps | 176 Gbps |
| Power | 100-127V: 130W 200-220V: 160W | 100-127V: 60W 200-220V: 80W | 100-127V: 500W 200-220V: 480W | 100-127V: 790W 200-220V: 760W | 100-127V: 790W 200-220V: 760W |
| Idle Power | 100-127V: 60W 200-220V: 80W | 100-127V: 30W 200-220V: 40W | 100-127V: 40W 200-220V: 80W | 100-127V: 60W 200-220V: 100W | 100-127V: 60W 200-220V: 100W |
| Action | Get a Quote Shop Now | Get a Quote Shop Now | Get a Quote Shop Now | Get a Quote Shop Now | Get a Quote Shop Now |
For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and eliminate traffic bottlenecks. 12-, 24-, and 48-port access (PoE and non-PoE) models and a 12-port aggregation switch provide options for flexible, powerful, and affordable deployment.
Simplify network management by stacking up to four (4) 1960 (access and aggregation) switches, managing them through a single management interface. You get up to 288 ports, including 16 10GbE uplink ports, for high-density environments, as well as flexibility for future network expansion.
Enable the latest Wi-Fi, IOT and high-performance hardware with 2.5GbE ports with the Instant On 1960 switch multi-gig access switches. With 2 times more available bandwidth over 1GbE ports, accelerate your business' growth and be ready to to support new and next-generation devices.
In a few simple steps, set up and configure a stack with the Instant On mobile app. You can manage the stack and ports remotely, and you’ll minimize network downtime—if the master switch within Instant On 1960 switches stack fails, another switch takes over, keeping your network up and running.
Provide support for additional devices you may add in the future. True Stacking makes it easy to configure, manage, and troubleshoot physical switches as one single entity, helping scale the network as your business grows.
The Instant On 1960 switches support Class 4 and Class 6 PoE on selected ports. Up to 30W of power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60 W PoE power delivery is available for Class 6 PoE devices like the Instant On AP22D and 1830 8-port access switch.
Protect your business data and keep unauthorized users off the network with advanced security features like IEEE 802.1X, MAC authentication, VLANs, Network Access Control (ACL), Port Security, DHCP snooping, ARP attack prevention and RADIUS authentication.
Aruba Instant On 1960 Switches are advanced, smart managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.
Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes. · Smart-managed layer 2+ Ethernet switch series ready to deploy in 24- and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
| Ports: | 48 10/100/1000 RJ-45 ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports, maximum, depending on model. PoE/PoE+ available on select models |
| Memory and processor: | Single Core ARMv7 Cortex-A9 @ 2Ghz, maximum, depending on model |
| Throughput: | 238 Mpps, maximum depending on model |
| Switching capacity: | 320 Gbps, maximum, depending on model |
| PoE capability: | 600W maximum, depending on model |
| Stacking capabilities: | 4H height |
| Management features: | Aruba Instant On Cloud Web browser SNMP Manager |
| Input voltage: | 100 - 240 VAC |
| Power Consumption: | 790W, maximum, depending on model |
| Product Dimensions (metric): | 40.28 x 44.25 x 4.40 cm |
| Weight: | 4.9 kg, maximum, depending on model |
